IC-D5505

icom

IC-D5505

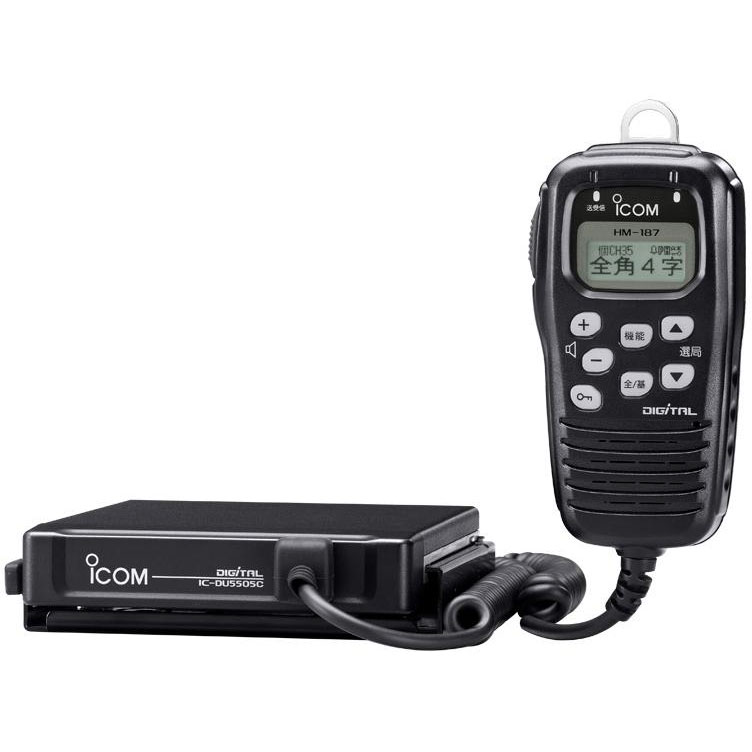

The IC-D5505 was the first digital, mobile radio on the market, introduced by ICOM. The microphone is the control center of the radio. With the microphone all functions are accessible. The display holds 4 full sized Chinese characters so that navigating the functions is also easy. Use either the 700mW speaker equiped in the Smart Mic or one of the optional external speakers for clear communications in various noise levels.
Specifications
Model Name IC-D5505 Digital/analog Kan-I Radio
Frequency Range Digital 467.000~467.4000MHz Analog 465.0375~465.1500MHz 468.5500~468.8500MHz
Number of Channels 65ch (digital)/ 35ch (analog)
Dimensions 25mm(H) x 125(W) x 161(D)
Weight approx 790g (including the microphone)
Tx Output Power 1/ 5W
Range approx 5~10km*
Power Supply Voltage DC 13.8V/26.4 ±10%
*Actual range may vary dependant upon environment, obstacles and other factors.

Some Optional Accessories

PS-230

Base Station Power Supply

SP-10

External Speaker

OPC-647

OPC-647

Microphone Extension Cable

For more information in English, please contact Japan Enix at 03-5715-9866 or c.clayborne@jenix.co.jp
